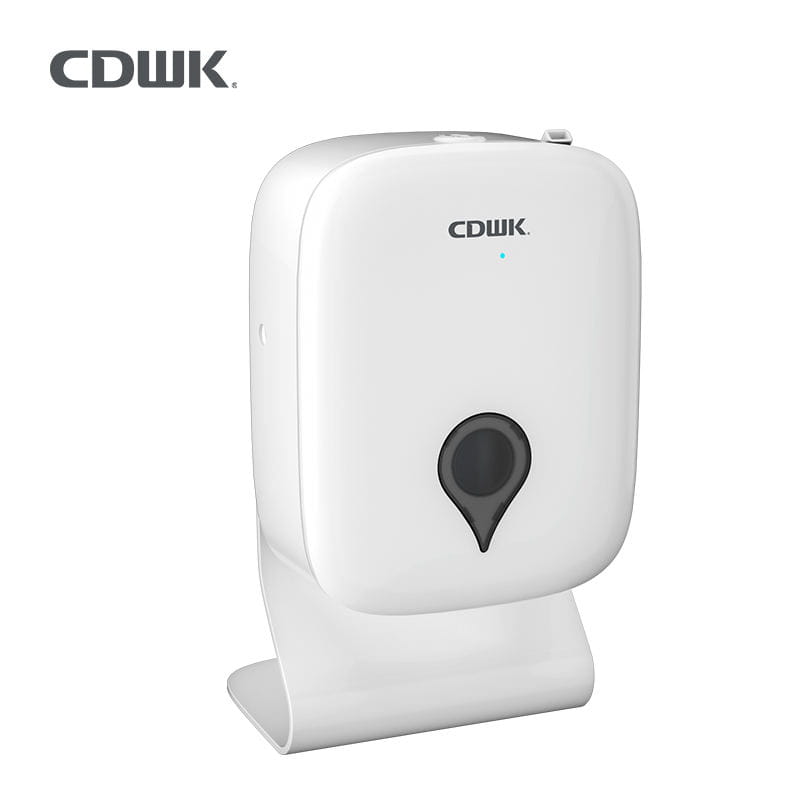

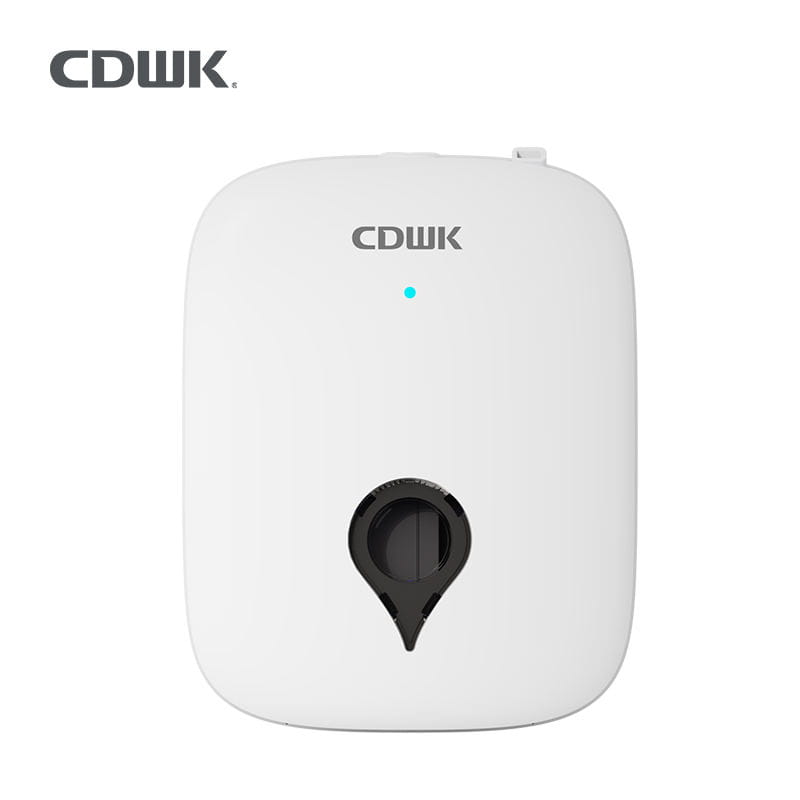

CDWK Bluetooth Smart Automatic Aroma Dispenser Air Freshener CD-6086
Key Features
Dual Version Selection: Two configurations to meet different needs: Bluetooth smart linked control version, and manually adjustable version for flexible scheduling.
Energy-Saving Air Pump Structure: Eco-friendly air pump driving design delivers ultra-low power consumption, effectively reducing operating costs and extending service life.
5 Independent Custom Modes: Microcomputer integrated intelligent control supports five separate working modes, with individually adjustable working time and fragrance concentration for each mode.
Large Capacity & Dual Installation: Equipped with a 150ml essential oil bottle for long continuous operation. Compact size allows both wall-mounted installation and desktop placement.
Wide Commercial Application: Ideal scent marketing device for hotels, auto 4S stores, shopping malls, beauty salons, exhibition halls, retail stores, cinemas, corridors and other commercial venues.
This eco-friendly smart automatic aroma dispenser air freshener features integrated intelligent automatic spray control. It can kill bacteria, remove mold and purify indoor air, deliver refreshing, soothing and fatigue-relieving effects, and consistently maintain fresh and fragrant indoor air. Made of premium imported plastic, this dispenser is sturdy and long-lasting. All raw materials and the entire production process comply with strict international standards, containing no toxic, polluting or radioactive ingredients, making it an authentic energy-saving and environmentally friendly product. We offer two versions for your choice: a Bluetooth smart control model and a manually adjustable model. The Bluetooth version connects to your mobile phone to set working parameters remotely, while the manual version lets you adjust operating modes directly on the machine. It is an ideal scent solution widely suitable for hotels, auto 4S stores, corridors, shopping malls, beauty salons, exhibition halls, brand retail shops, cinemas and many other commercial spaces.
Product Specs |
|
Product Name | Smart Automatic Aroma Dispenser Air Freshener CD-6086 |
Item ID | CD-6086 |
Color | White/Black/Customization |
Coverage Area | 100-300m³ |
Capacity | 150ml |
Power Supply | 2pcs of Size D/Power Plug |
Noise | ＜30dba |
Product Size | L133.8xW70.47xH169.7mm |
Material | ABS |
Package | 40pcs/ctn,31.2kgs |
Installation Steps
- Press the hanging plate against the wall and mark the hole positions. Drill holes at marked spots with an impact drill, then secure the hanging plate using the supplied wall plugs and screws; non-marking adhesive stickers are also available as an alternative installation method for your smart automatic aroma dispenser air f
- Hang the unit on the hanging plate, or place it flat on a countertop.
- Open the front cover of the dispenser.
- Open the battery compartment, insert 4 size C batteries, or connect an external DC 5V 2A power adapter to supply power to your air freshener dispenser.
- Take out the essential oil bottle, unscrew the atomizing head counterclockwise, fill essential oil into the bottle, tighten the head clockwise and place the bottle back inside the unit. Set working time modes as instructed.
- Close the front cover. The indicator light will turn on during scheduled working hours to indicate your smart automatic aroma dispenser air freshenerworks normally.
Equipment Maintenance
Perform maintenance every six months, or when switching fragrance scents, or when the scent output becomes noticeably weak, you can properly maintain your smart automatic aroma dispenser air freshener by following the steps below:
- Open the front cover and remove the empty essential oil bottle.
- Clean the essential oil filter every time you replace fragrance oil.
- Pour proper amount of alcohol into the bottle and rinse it thoroughly.
- Add a small amount of alcohol into the bottle, install it back to the machine, and run the device for 5 minutes.
- Replace the PE gasket.
- Disassemble the atomizing head and wipe the nozzle of the atomizing core with alcohol for cleaning.
- 1.Power On: Insert 4 size C alkaline batteries. A 5-second red light flash confirms power-on. Our smart automatic aroma dispenser air freshener screen displays time, date and working mode for normal use.
- Local Time Setting: Hold SET for 5s to enter time setting. Adjust hour, minute and weekday via UP/DOWN keys, confirm each step with SET. The system auto-saves all settings.
- Battery Level Indication: Fully charged Nanfu size C batteries show 7 power grids (≥1 grid means normal power). Flashing red light with buzzer indicates power for less than 24-hour use. Steady red light triggers automatic shutdown, please replace batteries in time.
- Working Time & Atomization Gear Setting: This smart automatic aroma dispenser air freshenerhas 5 independent working segments, with customizable runtime and fragrance concentration for each segment.
- 1st MODE press: Set working start time (hour/minute/weekday) and confirm with SET.
- 2nd MODE press: Set working end time and save settings.
- 3rd MODE press: Adjust atomization concentration (3-10s). Each UP/DOWN press changes the value by 1 second.
- 4th MODE press: Set scent pause time (120-900s): +20s per press (120-300s); +50s per press (300-500s); +100s per press (500-900s).
- Repeat above steps to finish settings for the rest segments.
- Working Mode Switching：Hold DOWN for 3s to cycle switch working modes
- – P1 (Default): Economic Mode
- – P0: Silent Mode
- – P2: Performance Mode (for essential oil viscosity ≥20mPa·s, special use only)
- Note: Single segment only supports 00:00-23:59 working time. Split cross-day periods into two separate segments. Do not overlap segment time to avoid system recognition failure.
- Quick Fragrance Concentration Adjustment： For ongoing segments, press UP/DOWN directly to adjust fragrance concentration, then press MODE to set pause time. This smart automatic aroma dispenser air freshenerauto-saves all settings. Quick adjustment only works for active segments; offline segments require formal mode setup.
